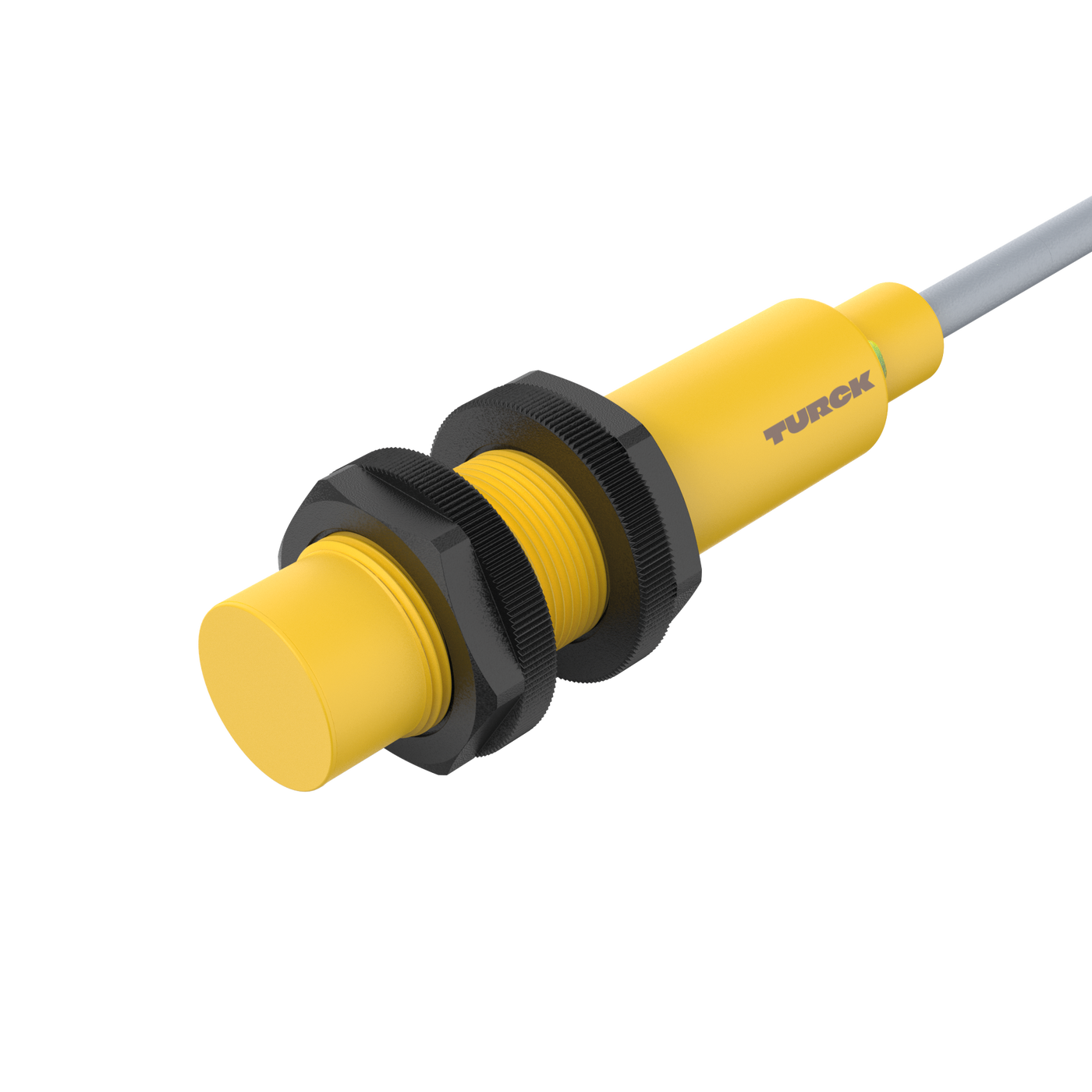

Capacitive Sensor

UC7-S18-VP6X/S3700-0.3M

Order ID no. 100052754

Ambient temperature max.: 70
Ambient temperature min.: -40
Approvals: UL
Cable color: Gray
Cable length: 0.3
Cable quality: PVC
Connector type: Open end

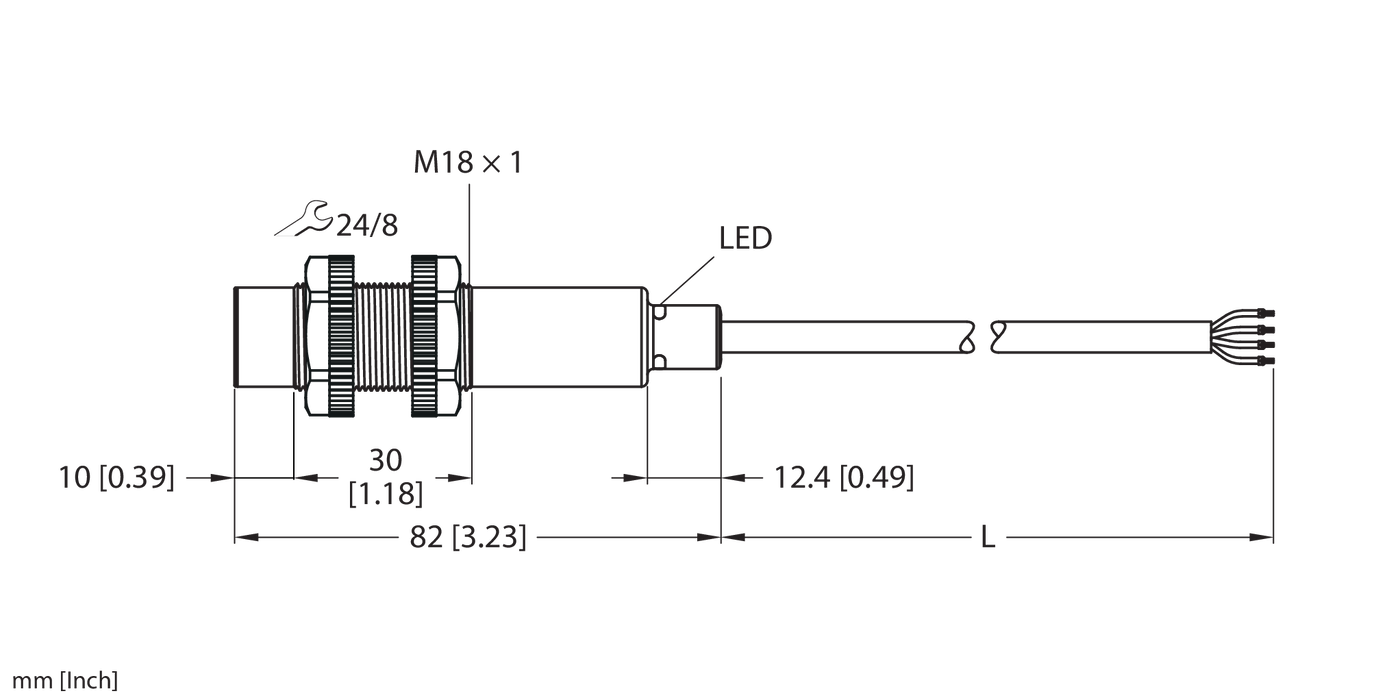

Construction size: ⌀ 18 mm
Design: Threaded barrel
Electrical connection: Stranded wires
Function: Continuous level measurement, For dry granules, For highly viscous media, Level detection
Housing material: Plastic
Housing quality: PA12-GF30
Measuring principle: Capacitive
Media temperature max.: 70
Media temperature min.: -40
Medium: Bulk goods, liquids
Mounting conditions: Flush/Non-flush
Operating voltage: DC
Output function: PNP preset
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: Complementary contact
