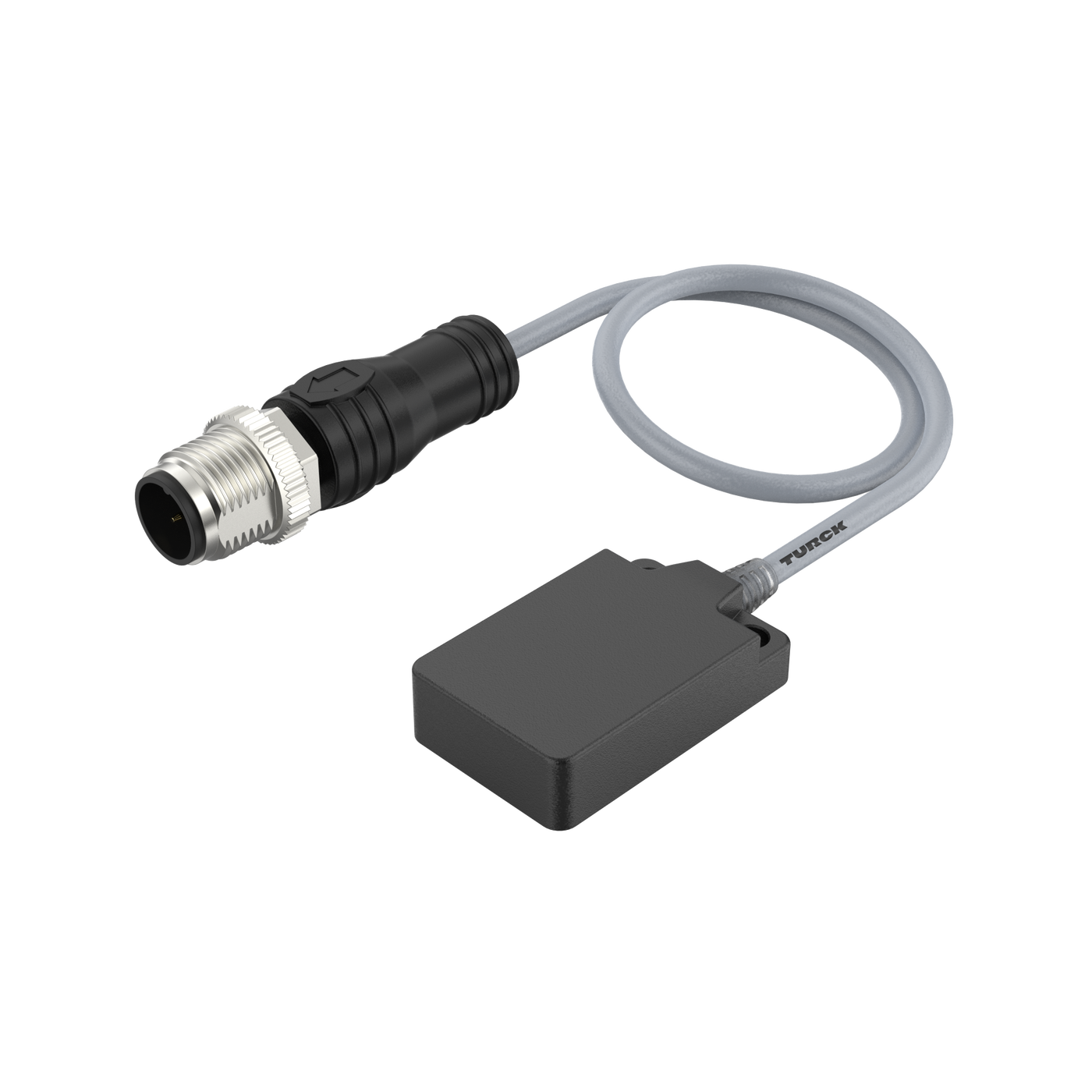

HF Read/Write Head IO-Link

TN-Q30-IOL2-0.15-RS4.47T

Order ID no. 100012164

Ambient temperature max.: 80
Ambient temperature min.: -25
Approvals: CE, cULus, UKCA
Cable color: Gray
Cable length: 0.15
Connector type: M12 x 1

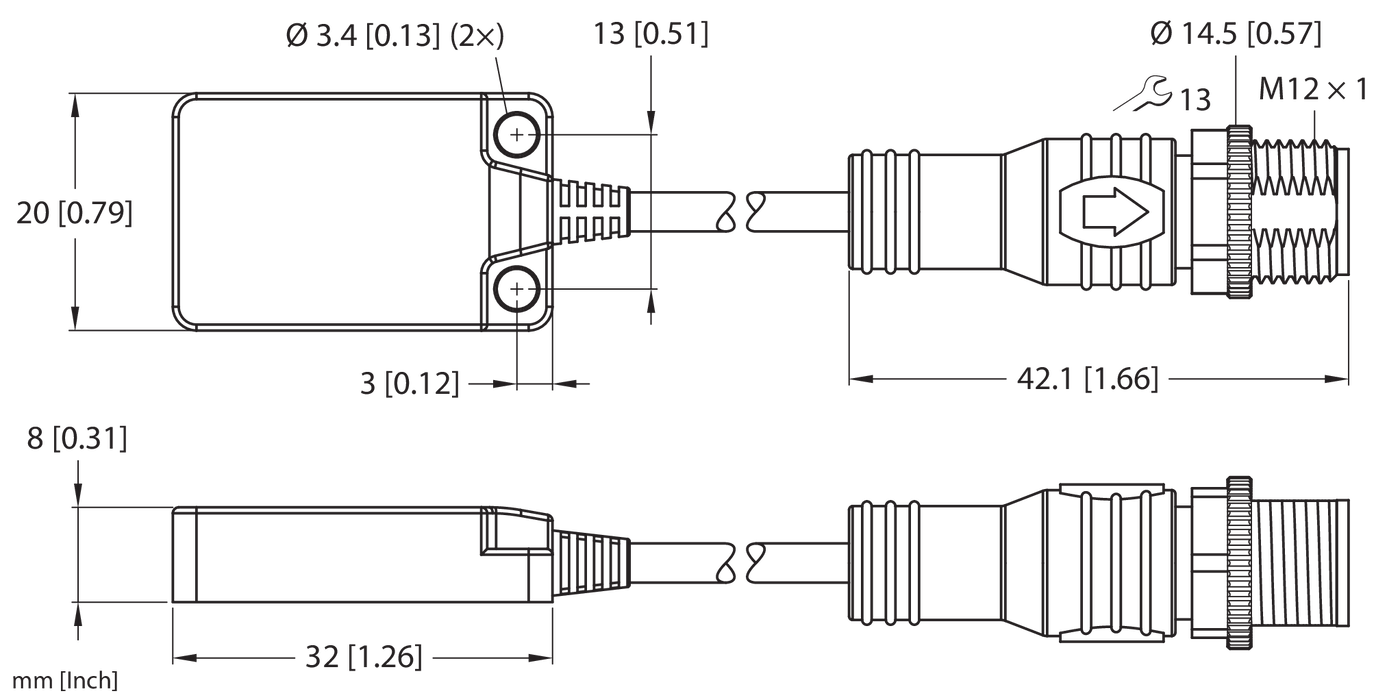

Dimensions: 32 mm x 20 mm x 8 mm
Electrical connection: Connector
Housing material: Plastic
Housing quality: PBT
Housing surface: Black
Mounting conditions: Non-flush
Network protocol: IO-Link
Operating voltage: DC
Output function: IO-Link
Protection class: IP69K front, IP67 rear
Quality active face: PBT
Radio approvals (HF): EU/RED: Europe, FCC: USA, IC: Canada, MIC: Japan, UK/SI 2017/1206: United Kingdom
Radio communication and protocol standards: ISO 15693
Switching element function: Read/Write
Technology: HF RFID
